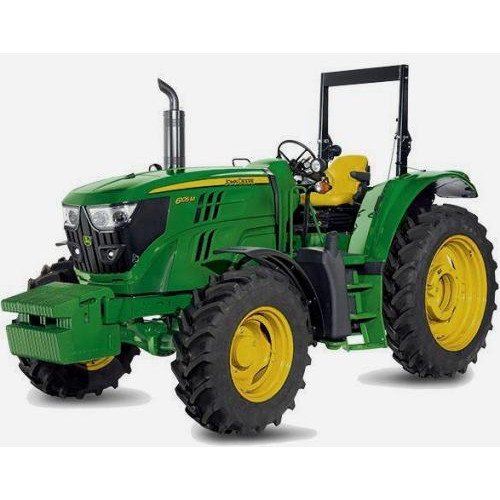

TM405819 - John Deere 6105M, 6115M, 6125M, 6130M, 6140M Tractor Repair Manual Download
Technical Service And Repair Manual - This is an Original factory manual for John Deere. Which Contains High Quality Images, Circuit Diagrams and Instructions to Help You to Service And Repair Your Machine. All Manuals Are Printable, without restrictions, contains Searchable Text and bookmarks.
MODELS COVERED
John Deere 6105M, 6115M, 6125M, 6130M, 6140M Tractor
CONTENTS
Description
Foreword Version date GENERAL INFORMATION Safety Measures General References ENGINE Operational Check-Out Tests and Adjustments FUEL, AIR INTAKE AND COOLING SYSTEMS Tests and Adjustments Operation ELECTRICAL SYSTEM Sub-System Diagnostics (Cab) Sub-System Diagnostics (Open Operator`s Station) Component Tests Functional Schematics (AutoPowr/IVT Transmission) Functional Schematics (PowrQuad Plus, AutoQuad and AutoQuad Plus Transmissions) Functional Schematics (Open Operator`s Station) Summary of Wiring Harnesses Wiring Harnesses Wiring Harnesses (Continued) Wiring Harnesses from Serial Number 398656 Wiring Harnesses from Serial Number 398656 (Continued) ELECTRONIC CONTROL UNITS Operation and General Information on Diagnostics Data BUS Systems, Theory of Operation ATC - Automatic Temperature Control Unit BCU - Basic Control Unit BIF - Basic Informator ECU - Engine Control Unit EPC - Control Unit for PowrQuad Plus, AutoQuad and AutoQuad Plus Transmissions JDL Control Unit for JDLink PLC - Park Lock Controller PRF - Performance Monitor SFA - Control Unit for Front-Wheel Drive Axle and Cab Suspension SIC - Control Unit for Electrically Actuated Selective Control Valves SSU - Control Unit for AutoTrac TCU - Control Unit for AutoPowr/IVT Transmission TEC - Control Unit for Tractor Equipment Interface UIC - User Interface Controller UIM - User Interface Module, Keyboard for ISOBUS Display SYNCROPLUS TRANSMISSION Introductory Checks Operational Check-Out Tests and Adjustments Operation POWER REVERSER TRANSMISSION Operational Check-Out Tests and Adjustments Operation AUTOPOWR/IVT TRANSMISSION Operational Check-Out Tests and Adjustments Operation POWRQUAD, POWRQUAD PLUS, AUTOQUAD AND AUTOQUAD PLUS TRANSMISSIONS Operational Check-Out Tests and Adjustments Operation DRIVE SYSTEMS Operational Check-Out Tests and Adjustments Operation STEERING AND BRAKES Introductory Checks Operational Check-Out Tests and Adjustments Operation HYDRAULIC SYSTEM Operational Check-Out Tests and Adjustments Operation
CAB Operational Check-Out Tests and Adjustments Operation SPECIAL TOOLS Special Tools (Dealer-Fabricated) Special Tools and Test Equipment
Pages - 1612
Language - English
Customer Support - 24x7
File Format - PDF (Portable Document Format)
Compatible - All Versions of Windows, Android & Mac
Download - After Payment You Will Receive Link on Your Email
